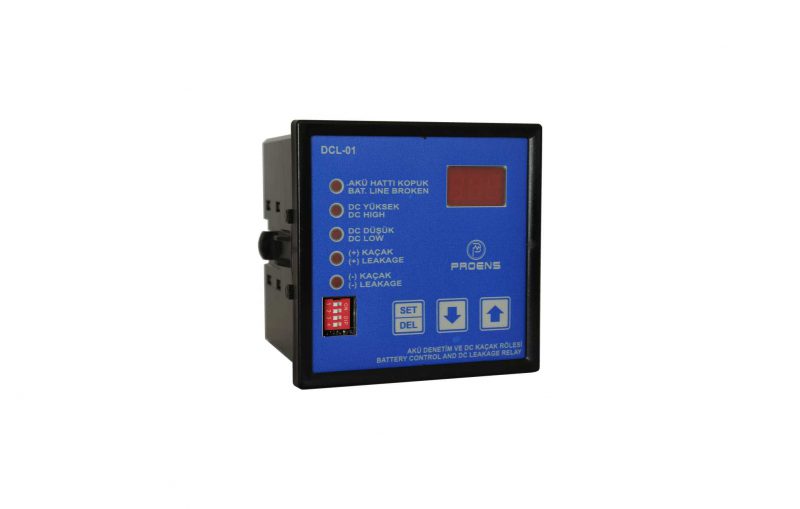

DCL-01A | Battery Line Broken and DC Leakage Relay

DCL-01A relay continuously controls DC supply line and when one of the predetermined five errors occurs, it gives a contact by pulling the relevant relay; the warning lamp is lit continuously as long as the error continues. By Pressing Alarm Delete Button, alarms which are not continuing can be deleted. The reasons of failure determined by the relay are as follows:

1. Battery Line Broken (It needs 2mh Inductor )
2. Low voltage (ThresholdAdjustable)
3. Over-voltage (ThresholdAdjustable )
4. (-) leakage (ThresholdAdjustable )
5. (+) leakage (ThresholdAdjustable )
